New for 2009!

Click to enlarge image(s)

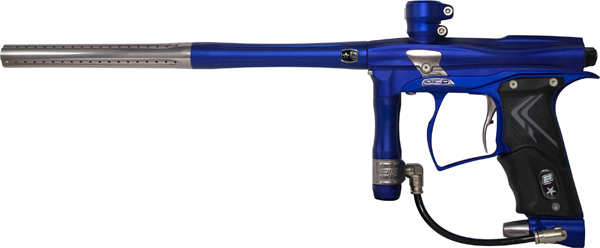

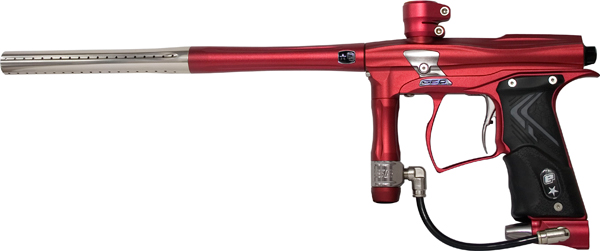

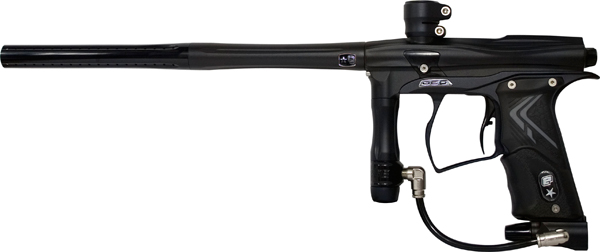

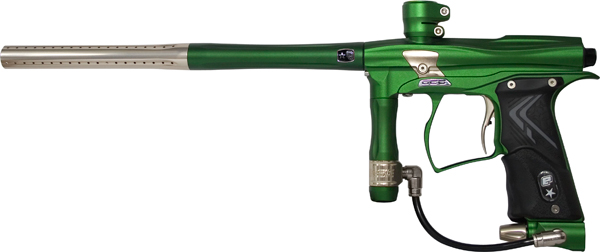

The Eclipse Geo has been designed and developed to neutralize all the traditional negative aspects of spool-valve based markers. It offers exceptional air efficiency. It has the fewest possible number of dynamic seals yet it still has a Gas Supply Isolation mechanism built into the firing cycle. It is as easy to tech as any other Eclipse marker. It is incredibly reliable. It is compact, balanced and amazingly lightweight. It is everything that Eclipse stands for. It has a smooth operation with a low reciprocating mass (the bolt is the only moving part and weighs less than 18grams). Low operating pressure between 110-135psi and a quiet sound signature. What the Eclipse Geo now offers is all of the benefits of a spool-valve marker, with none of the drawbacks.

Geo 09 Features:
Spool Valve Design
Low Reciprocating Mass – Bolt 18g
Low Pressure Operation – 110-135psi
Air Efficient – 1500+ shots from 68/4500 air tank
1 Moving Internal Part
Minimum Number of Dynamic Seals – 3
ISCIS – Innovative Solenoid Controlled Isolation System Mechanism
VVC – Variable Volume Chamber adjustment
Spool-Cure Bolt – Helps eliminate 2nd ball clipping in the feed stack
6 – Second Strip Down – To remove and separate all internal Bolt components
Tool-Less Bolt Removal – All internal bolt components removed without tools
Very Low Weight - 860g

Features:
Break Beam Sensor System
Black-On-White Transflective LCD Module
Def-Tek Offest Feed
C-Lever Clamping Feedneck
Dual Selectable Trigger Switching - Opto and Micro Switches
Dual Trigger Return Mechanisms - Spring and Magnetic Return
Integrated Audible Beeper for Alarms and Actuations
Capped and Uncapped Ramp Modes
All Major Tournament Presets
9 Preset Debounce Modes
5-Point Adjustable Trigger
T-Rail Mounting System
OOPS - On/Off/Purge ASA System
S3 Self-Purging In-Line Regulator
14" Shaft3 2-Piece .693 Barrel

*Listed weight refers to shipping weight (packing included)
